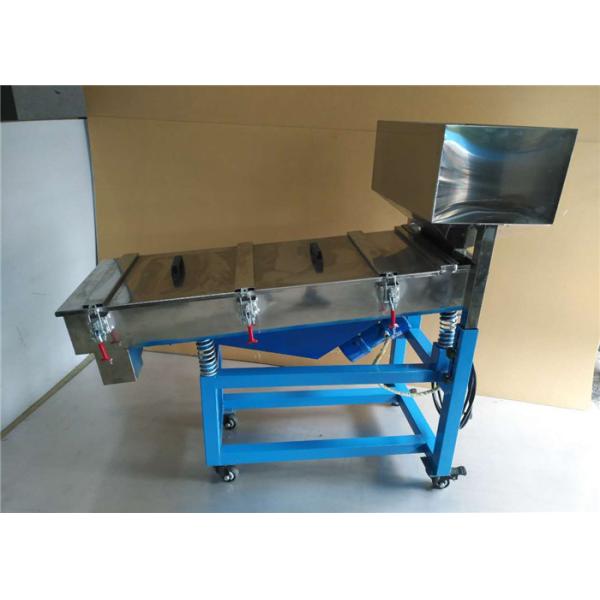

    Silica Sand 100TPH 1.62M2 Linear Vibrating Screen

    Ask Lasest Price
    Brand Name : AAREAL
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 20~30 work days after order confirmed
    • Product Details
    • Company Profile

    Silica Sand 100TPH 1.62M2 Linear Vibrating Screen

    Silica Sand 100TPH 1.62M2 Linear Vibrating Screen


    Introduction of Linear Vibrating Screen


    Linear vibrating screen is a standard and universal screening equipment.

    The movement track of its screen box is close to straight line. Almost all the linear vibrating machine are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.


    Working principle of Linear Vibrating Screen


    linear vibration screen use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.


    Main Features of Linear Vibrating Screen


    1. Small volume, light weight, easy to install and processing set-up;

    2. Adopt energy saving vibration motor or vibrator as vibration source;

    3. Rubber spring supports and isolates vibration, large capacity, high screening efficiency;

    4. The screen is assembled by the standard small pieces. Replacement is extremely convenient.


    Open Type (ZSG-□×□): It is seat-type and no dust cover plate structure. Used for big screening capacity and no dust pollution of particle material screening.

    Closed Type (ZSGB-□×□): It is seat-type and complete close structure. Used for big screening capacity and dust pollution of particle material screening.


    Parameters of Linear Vibrating Screen


    Model

    Feeding Size

    (mm)

    Capacity

    (t/h)

    Vibration Motor

    Voltage

    (V)

    Power

    (KW)

    Vibration Frequency

    (HZ)

    Double Amplitude

    (mm)

    Effective Screening Area

    (m2)

    Weight

    (kg)

    Single Support Dynamic Load

    (N)

    ZSGB-09×18≤25010-100YZO-17-43800.75*2255-71.621960900
    ZSGB-10×2010-180YZO-20-62.0*2166-82.028301300
    ZSGB-12×2410-200YZO-30-62.5*22.8831201620
    ZSGB-10×3015-250YZO-30-62.5*23.033501850
    ZSGB-15×3020-350YZO-50-63.7*24.545102810
    ZSGB-15×4030-500YZO-75-65.5*26.056704650
    ZSG2B-10×2010-180YZO-20-62.0*22.031701300
    ZSG2B-12×2410-200YZO-30-62.5*22.8836401620
    ZSG2B-10×3015-250YZO-50-63.7*23.038701850
    ZSG2B-15×3020-350YZO-50-63.7*24.552302810
    ZSG2B-15×4030-500YZO-75-65.5*26.066304650
    Note: the capacity in the table above shows the theoretical parameters when sieve mesh is more than 5mm and proportion is 1.6t/m3.

    High Efficiency Heavy Duty Linear Vibrating Screen Equipped with Vibration Exciter:

    ModelZSGB-15×30ZSGB-15×40ZSGB-15×50
    Screening AbilityParticle Size (mm)≤300≤300≤300
    Capacity (t/h)20~28020~30020~380
    MotorY132M1-6Y132M2-6Y132M2-6
    Voltage (V)380380380
    Power (KW)4.0*25.5*25.5*2
    Vibration Frequency (Hz)161616
    Double Amplitude5~85~105~10
    Vibration ExciterWJZZ-100-6WJZZ-120-6WJZZ-150-6
    Ref. Weight (kg)480059006700
