    Electromagnetic Industrial Vibrating Equipment Vibration Bin Hopper Silo Wall Vibrator

    Ask Lasest Price
    Brand Name : AAREAL
    Model Number : CZ
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 20~30 work days after order confirmed
    • Product Details
    • Company Profile

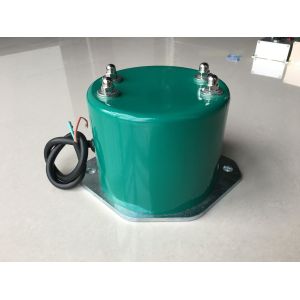

    Electromagnetic Industrial Vibrating Equipment Vibration Bin Hopper Silo Wall Vibrator

    Electromagnetic Industrial Vibrating Equipment Vibration Bin Hopper Silo Wall Vibrator

    Working Principle of Electromagnetic Vibration Bin Hopper Silo Wall Vibrator:
    CZ electromagnetic hopper wall vibrator (also known as shaker) relies on high-frequency vibration and impact force to effectively eliminate blockage and tower arching phenomenon caused by internal friction, deliquescence, electrification, composition segregation etc., so that the material can be discharged smoothly from the silo mouth. The electromagnetic hopper wall vibrator can ensure a stable supply of the necessary equipment, and it has been widely used in mining, metallurgy, chemical, building materials, machinery and other industries.

    Features and Application Scope of Electromagnetic Vibration Bin Hopper Silo Wall Vibrator:
    The hopper wall vibrator can be used in various vibration machines, such as feeder, small conveyor, vibrating screen, vibration platform and hopper wall vibration etc., which is flexible and convenient to use. The vibration intensity can be adjusted freely by the controller.
    The electromagnetic vibrator is a high-efficiency and energy-saving vibrator that is widely used in powder machinery such as chemicals, building materials, minerals etc. The electromagnetic vibrator is installed on the outside of the shrinkage at the lower part of the powder silo. The high-frequency vibration produced by the electromagnetic vibrator can effectively eliminate blockage and tower arching phenomenon caused by internal friction, deliquescence, electrification, composition segregation etc. The electromagnetic vibrator is used as a dredging device, the structure is simple, the material pass through smoothly, and the feeding system can be stabilized. Electromagnetic vibrators can also be used on other machines that require vibration sources. The electromagnetic vibrator is easy to use. Connect the diode attached to the vibrator in series with the coil winding lead, and turn on the 220V AC power supply to work.

    Purpose of Electromagnetic Vibration Bin Hopper Silo Wall Vibrator:
    The CZ type hopper wall vibrator relies on high frequency vibration and impact force. It can effectively eliminate the arching and clogging phenomenon of materials in the silo, so that the materials can be smoothly discharged from the silo. Vibration force can be supplied according to user requirements.

    Technical Parameters of Electromagnetic Vibration Bin Hopper Silo Wall Vibrator:

    Item/ModelCZ10CZ50CZ100CZ250CZ400CZ600CZ800
    CZ1000
    Vibration Force (kg)10501002506006001000
    Effective Power (KW)0.0080.030.10.060.150.150.2
    working voltage (V)220220220220220220220
    Supply Frequency (HZ)50505050505050
    Working Current (A)0.1111.612.32.33.8
    Vibration Frequency (time/min)3000300030003000300030003000
    Amplitude (mm)1.51.51.52222
    Control Modehalf-wave rectification
    Weight (kg)212.524245858119.3
    Silo Wall Thickness (mm)0.6-0.81.2-1.62.5-3.21.0-4.03.0-8.03.0-8.06.0-14
