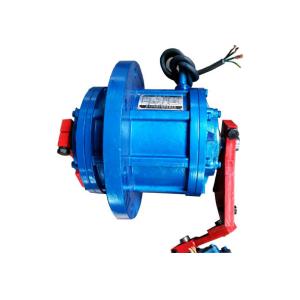

    Buy cheap Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor from wholesalers

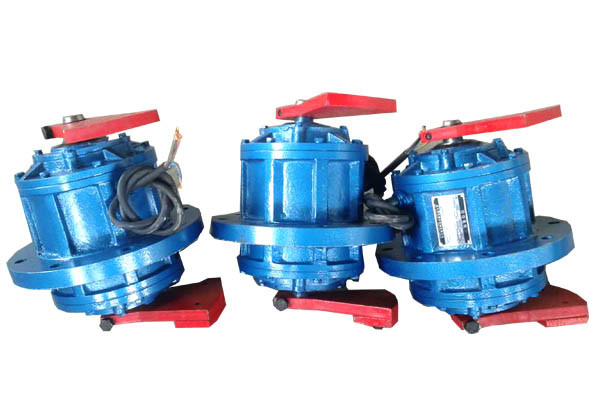

    Buy cheap Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor from wholesalers

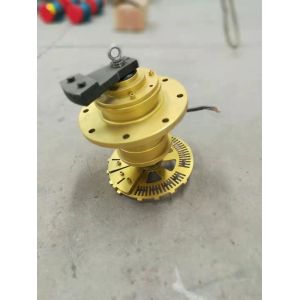

    • Buy cheap Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor from wholesalers

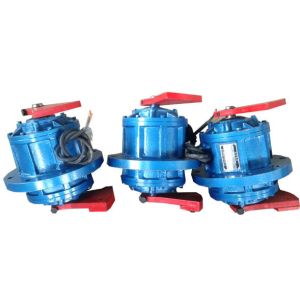

    • Buy cheap Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor from wholesalers
    • Buy cheap Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor from wholesalers

    Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor

    Ask Lasest Price
    Brand Name : AAREAL
    Model Number : AVL
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 20~30 work days after order confirmed
    • Product Details
    • Company Profile

    Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor

    Rotary Motion Industrial Vibrating Equipment Vertical Vibrating Motor


    Overview of Vertical Vibrating Motor:

    The vertical vibrating motor is widely used in the vibrating equipment such as vibration polishing machine, vibration crusher, rotary vibration cleaning machine, vibration drying machine vibration and vibration mixer, especially widely used in rotary vibration sieve (circular vibration sieve) to improve the sieving efficiency and accuracy, and complete the cleaning of special parts surface quality efficiently, improving the crushing or mixing effect.


    Structure and Working Principle of Vertical Vibrating Motor:

    The vertical vibrating motor is composed of special motor and eccentric block. Eccentric block can be configured differently according to the operation requirement of the vibration equipment, semicircle or rectangle, achieving the vibration effect the user needs.

    The vertical vibrating motor rotates after being electrified , driving the eccentric block at both ends of the motor shaft to generate the inertial excitation force, which is passed to the vibrating motor through the motor flange.

    The AVL series vertical vibrating motor is divided into two, four, six and eight classes these four specifications, the shake frequency of which are 2870, 1460, 980 and 740RPM respectively.


    Characteristics of Vertical Vibrating Motor:

    1. AVL series of vertical vibrating motor keep improving in design. With advanced structure and good vibration resistance.

    2. Light weight, small volume, large exciting force and easy to adjust.

    3. The single flange structure is used to facilitate the installation and maintenance of vertical vibrating motor and improve the handling capacity of the main machine.

    4. Good appearance and quality, high insulation grade and protection grade, can be reliably used in high dust and damp places.

    5. The design of electromagnetic parameters conforms to the working characteristics of vibrating motor. Starting more quickly and running more smoothly.

    6. Select the specially-made anti-vibration bearing of the well-known manufacturer. High reliability and long service life.

    7. The electromagnetic part and the bearing temperature rise can be controlled effectively during the long time continuous operation of the vibration motor, which makes the AVL vertical vibrating motor have a long life.


    Technical Parameters of Vertical Vibrating Motor:

    Model

    Max. Vibration Force (N)

    Synchronous Speed

    (rpm)

    Power

    (kw)

    Electric Current (A)Installation and Dimensions(mm)

    Remarks

    Φ1Φ2Φ3BN*dLER
    AVL-3-2300030000.250.62230200160204*Φ11.528010070top flange
    200130medium flange
    AVL-5-2500030000.41.152252051552014*Φ627010078top flange
    205100medium flange
    AVL-8-2800030000.551.452252051552014*Φ627010078top flange
    205100medium flange
    AVL-10-2B1000030000.751.842752401682018*Φ6310100120top flange
    240100medium flange
    AVL-10-2A1000030001.12.32702401852018*Φ636612574top flange
    240125medium flange
    AVL-20-22000030001.53.1315265225348*Φ18460165180top flange
    270225medium flange
    AVL-3-4300015000.180.6230200160204*Φ11.528010085top flange
    200130medium flange
    AVL-5-4500015000.250.74245210170226*Φ11.5320100120top flange
    220140medium flange
    AVL-8-4800015000.551.5275235195246*Φ14380150140top flange
    240195medium flange
    AVL-8-41000015000.751.85315265225348*Φ18460165160top flange
    270225medium flange
    AVL-10-41500015001.12.58315265225348*Φ18470160180top flange
    270215medium flange
    AVL-15-43000015001.53.6375315272348*Φ22490160200top flange
    320225medium flange
    AVL-30-45000015002.25.1440380325368*Φ20560260235medium flange
    AVL-50-4300010000.250.92245210170228*Φ11.5340120135medium flange
    220155top flange
    AVL-3-6500010000.371.2275235195248*Φ14400150140medium flange
    240195top flange
    AVL-10-61000010000.752.2315265225348*Φ18500165160medium flange
    270225medium flange
    AVL-15-61500010001.13.1375315272348*Φ22540170200top flange
    320225medium flange
    AVL-20-62000010001.54.0375315272348*Φ22540180200top flange
    320235medium flange
    AVL-30-63000010002.25.6440380325368*Φ26600260235medium flange
