    Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

    Ask Lasest Price
    Brand Name : AAREAL
    Model Number : TD
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 20~30 work days after order confirmed
    • Product Details
    • Company Profile

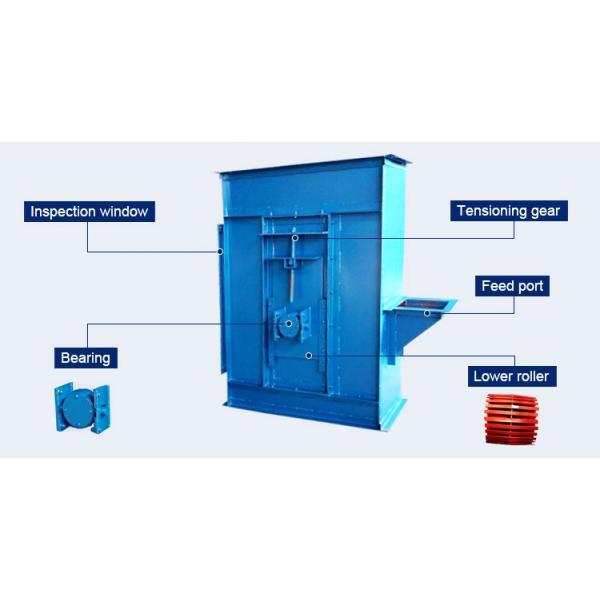

    Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates

    Belt Type Industrial Conveyor Systems Bucket Elevators For Cement / Aggregates


    Application of Belt Type Bucket Elevators:

    The belt type bucket elevator is suitable for vertical conveying powder, granular and small block less abrasive bulk material, such as grain, corn, coal, cement, crushed ore etc. The lift height can reach 40 meters. Material temperature is less than 60℃. Compared with the conventional D-type bucket elevator, high conveying efficiency, a variety of bucket types, should be first choice.

    1. Large conveying capacity. Compared with D type, the conveying capacity of TD type with the same bucket width is nearly doubled.
    2. The traction parts adopt high-strength rubber conveyor belt with high tensile strength and long service life.
    3. Simple structure, easy installation, easy adjustment, repair and maintenance.


    Features of Belt Type Bucket Elevators:

    1. Small driving power

    The belt type bucket elevator adopts inflow type feeding and gravity induction type discharging. It uses intensive arrangement large-capacity hopper to convey. There is no no returning and excavating phenomenon when lifting the material. Therefore, the reactive power is less.


    2. Broad lifting range

    This belt type bucket elevator has few requirements to the material kinds and characteristics. It can not only lift the powdery, granular and ordinary bulk materials, but also can lift the strong abrasive or grinding materials. Good sealing and less environmental pollution


    3. Good running reliability

    Advanced design principle and machining method ensures the reliability of machine operation. Trouble-free time is more than 20000 hours. Bucket elevator runs smoothly, thus can achieve high lifting height.


    4. Long service life

    The belt type bucket elevator adopts inflow type feeding. No need to dig material with the bucket. Extrusion and collision between material rarely occur. The machine is designed to ensure that the material in the feeding and unloading will not scattered, which prevents abrasive wearing.



    Driving Configuration Table of Belt Type Bucket Elevators:

    ModelTransmission Device ModelPower (KW)MotorReducer Model
    Right Transmission DeviceLeft Transmission Device
    TD100C11.5Y100L-6250-Ⅵ-3Z250-Ⅵ-4Z
    C22.2Y112M-6
    TD160C13Y132S-6350-Ⅵ-3Z350-Ⅵ-4Z
    C24Y132M1-6
    C35.5Y132M2-6400-Ⅵ-3Z400-Ⅵ-4Z
    C47.5Y160M-6
    TD250C15.5Y132M2-6400-Ⅵ-3Z400-Ⅵ-4Z
    C27.5Y160M-6
    C311Y160L-6500-Ⅵ-3Z500-Ⅵ-4Z
    C415Y180L-6
    TD315C17.5Y160M-6400-Ⅵ-3Z400-Ⅵ-4Z
    C211Y160L-6500-Ⅵ-3Z500-Ⅵ-4Z
    C315Y180L-6
    C418.5Y200L1-6650-Ⅵ-3Z650-Ⅵ-4Z
    TD400C115Y180L-6500-Ⅵ-3Z500-Ⅵ-4Z
    C218.5Y200L1-6650-Ⅵ-3Z650-Ⅵ-4Z
    C322Y200L2-6
    C430Y225M-6
    TD500C118.5Y200L1-6650-Ⅵ-3Z650-Ⅵ-4Z
    C222Y200L2-6
    C330Y225M-6
    C4
    TD630C122Y200L2-6650-Ⅵ-3Z650-Ⅵ-4Z
    C230Y225M-6

    Technical Parameter Table of Belt Type Bucket Elevators:

    ModelTD160TD250TD315TD400
    Bucket TypeQhzDSdQhzDSdQhzDSdQhzDSd
    Capacity (m3/h)5.49.69.616122223351730254024464166
    Bucket Width (mm)160250315400
    Bucket Volume (L)0.50.94.21.91.32.23.04.623.63.85.83.15.65.99.4
    Pitch of Buckets (mm)280350360450400500480560
    Belt Width (mm)200300400500
    Bucket Speed (m/s)1.41.61.61.8
    Material Maximum Block Size (mm)25354555
    ModelTD500TD630TD160TD250TD350TD450
    Bucket TypeQhzDSdhzDSdQSQSQSQS
    Capacity (m3/h)3870589285891424.78182225425072
    Bucket Width (mm)500630160250350450
    Bucket Volume (L)4.899.3151414.623.50.651.12.63.277.814.515
    Pitch of Buckets (mm)500625710300400500640
    Belt Width (mm)600700200300400500
    Bucket Speed (m/s)1.8211.251.251.25
    Material Maximum Block Size (mm)607025354555
    Notes:

    1. Bucket volume in the table is the calculated value. The conveying capacity is calculated according to the filling coefficient of 0.6.

    2. The uses of bucket are as follows.

    Shallow bucket: conveying materials in damp, easy to agglomerate, difficult to throw. e.g. wet sand, wet coal etc.

    Deep bucket: conveying dry, loose materials , and materials easy to throw. e.g. cement, coal briquette, gravel, quartz etc.


    TD Belt Bucket Elevator NE Plate Chain Bucket Elevator TH Ring Chain Bucket Elevator
