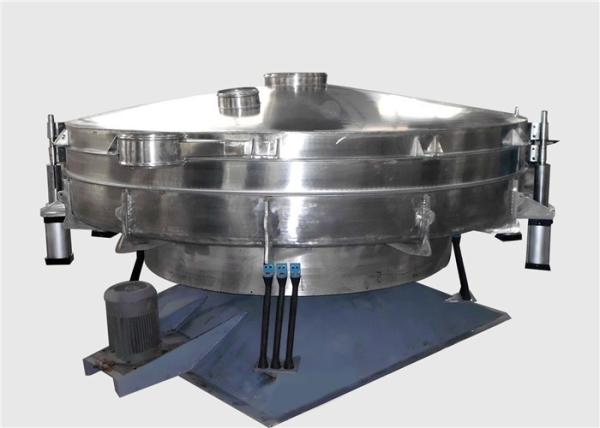

Round Multilayer Sieve Separator Machine With Pneumatic Lifting Device

Overview of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

What is the tumbler screening machine? The round multilayer tumbler screening machine with pneumatic lifting device is also called tumbler screen, tumbler screener, tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc. The simplest sieving is using your hands with the staring of your eyes. Tumbler screening machine is the mechanical simulation for this.

The tumbler screening machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes.

Swinging sieve is the most effective screening machine that simulates the principle of artificial screening. The screening accuracy, efficiency and screen service life are 5~10 times of regular round vibrating sieve machine. It conforms to all fine and ultra-fine powder and granular materials, especially suitable for materials which are difficult to classify.

Multi-deck tumbler screening machine is often used to screen xylitol, food additives, citric acid, EPS, PAA, PVC, glass beads etc.

Features of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

1. High capacity: the unit area capacity is five times bigger than other screen machine.
2. High screening accuracy: it can imitate the screening action and process of manual operation effectively. Make the material walk a long distance on the screen surface, improve the screening accuracy.
3. Ingenuity: circular building block assembly structure, small volume, light weight. Easy to install and disassemble.
4. Long service life: low frequency, small load, so low load to the screen, can be used for long time.
5. No environment pollution: fully closed structure,almost no Let out of material dust.
6. It can add many kinds of the self-cleaning device to the screen surface which can avoid blocking the screen. There are five kinds of self-cleaning device for you to choose: bouncing ball,Rolls brushes,jet type,elastic scraper,ultrasonic.
7. Low noise: noise < 75db
8. Adopt brand motor as power source, with longer service life.

Working Principle of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.

While the tumbler screening machine is running, its radial inclination ensures that the material being screened moves from the center of the screen outwards, while its tangential inclination makes the material move in circular fashion on the screen. The interaction between the two resulting forces makes the particles being screened move in a spiral pattern on the screen fabric, ensuring that the particles stay a long time on the screen. This, in turn, enables the machine to achieve an optimum level of grading accuracy with respect to the particle size ranges while simultaneously minimizing oversize and fines contamination.

According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.

Screen Parameter Control Diagram of Multi-deck Tumbler Screening Machine:

Only recording the best running setup parameters, you can reproduce the best operation at any time to ensure the quality of your products.

Date: Material: PVC Powder

Min^-1 220

Radial Direction R 8

Tangent Direction T 2

Eccentricity E 35

BALANCE IS IMPORTANT !!

Pneumatic Lifting Device

Application of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:

The tumbler screening machine can be widely used in chemical, food and spices, plastics and synthetic resin, mining, medicine, wood and plywood, metallurgy, feed, rubber, fodder, fertilizer, sugar, salt, renewable industry and so on.

1. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
3. Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, lithium battery materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.

Mesh Cleaning Method of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:　

1. Bounce Ball + PU Ring Cleaning

2. Brush Cleaning Device

3. Compressed Air Cleaning Device (Jet Airflow Cleaning)

4. Jet Airflow + Brush Cleaning

5. Elastic Scraper Cleaning

6. Ultrasonic Technology Cleaning

Technical Parameters of Round Multilayer Tumbler Screening Machine with Pneumatic Lifting Device:
