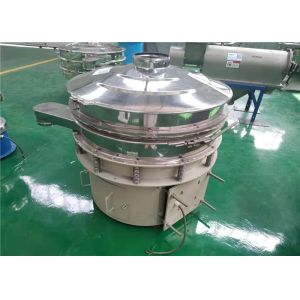

Powder Paint Vibratory Screen Separator Machine Flange Type Screen Structure

Introduction of High Energy Powerful Rotary Vibration Screening Machine For Powder Paint​:

Our AYGO circular three-dimensional vibration multi-deck screening machine for silicide alkali do not use vibrating motors but instead use general-purpose motors, keeping the vibratory agent and motor separate.

The upper and lower weights mounted to the top and bottom of the vibratory agent enable the three-dimensional movement (horizontal, verticle and oblique) and treatments according to the material properly.

The optimal adjustment of vibrations and revolutions is possible by integrating the inverter control to the machine.

Our AYGO series sieve machines meet the market demand for screening that is faster, more reliable and more precise. The doubling of amplitude achieves two to four times greater screening capacity than the conventional types. Moreover, the vibration pattern can be altered in accordance with the materials.

Comparison Between High Energy Powerful Rotary Vibration Screening Machine For Powder Paint and Conventional Rotary Vibrating Screen:

Working Principle of High Energy Powerful Rotary Vibration Screening Machine For Powder Paint:

Generally, the machines vibrate with the screen surface as the center, and the weights mounted at both shaft ends of the vibratory agent creat the vibrations. The revolution of the upper weight generates horizontal vibrations to the screen surface and moves the materials fed onto the center of the screen in the direction of revolution. The lower weight generates vertical vibrations and moves the materials toward the periphery. These vibrations are combined to generate special three-dimensional movements at the screen. Shifting the phase of the upper weight in relation to the lower weight changes the vibratory behavior, thus creating the optimal movement for the materials being treated.

Characteristics of High Energy Powerful Rotary Vibration Screening Machine For Powder Paint​:

1. the longitudinal acceleration of powerful rotary vibrating screen is twice as much as the original product rotary sieve (compared with our company)

2. the handling capacity is 2~4 times that of the original product (compared with our company). Materials those are difficult to screen can hardly clog up the mesh, and the output is also doubled.

3. the noise is obviously decreased. Small volume, convenient movement, no installation foundation

4. with more powerful vibration force and solid structure

5. more convenient to replace screen mesh

6. ordinary motor drive. Explosion-proof motor drive is also available

Overall Structure of High Energy Powerful Rotary Vibration Screening Machine For Powder Paint​:

Screen Structure of High Energy Powerful Rotary Vibration Screening Machine For Powder Paint:

Inner Ring: The screen mounting part (flange) is positioned on the screen frame (particle contacting side). There is no leakage of powder or liquid (aqueous solution) regardless of whether the screen apertures are large or small.	Outer Ring: The screen flange is positioned outside the screen frame. The effective screen area reaches the periphery to the discharge opening, and the screening function is available over the entire screen. This also avoids the risks whereby the residual materials above the sieve drop through it, the steel wires unravel, and worn-off powder or foreigh materials are intermixed with the materials.	Cassette: Dismantling and assembly can be done via the simple cassette method, which is easy enough for inexperienced workers to use. The work efficiency in changing products will improve signilicantly, since such work is done simply by preparing cassette frames. You do not have to waste any more screens. You do not have to waste any more screens. Due to its simple method of assembly/disassembly, it is best for screening products that necessitate frequent cleaning.

The direction of material movement on the screen surface depends on the phase angle of the upper and lower eccentric blocks.

Phase Angle 0°	Phase Angle 45°	Phase Angle 90°
The material on the screen surface moves linearly along the outer circumference.	The material on the screen surface moves spirally in the outer circumferential direction.	The material on the screen surface moves spirally toward the center.

Some Specifications of High Energy Powerful Rotary Vibration Screening Machine For Powder Paint​:
