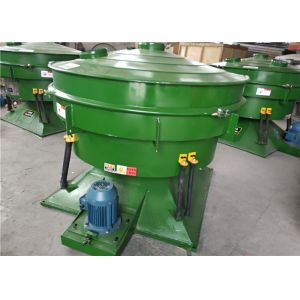

    Yeast Granules Vibratory Screen Separator Tumbler Sieve 600mm - 2300mm Diameter

    Ask Lasest Price
    Brand Name : AAREAL
    Model Number : AM
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5 sets per month
    Delivery Time : 20~35 work days after order confirmed
    • Product Details
    • Company Profile

    Yeast Granules Vibratory Screen Separator Tumbler Sieve 600mm - 2300mm Diameter

    Yeast Granules Vibratory Screen Separator Tumbler Sieve 600mm - 2300mm Diameter


    Introduction of High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules:

    High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules is a separation method that uses three-dimensional elliptical movement to separate very fine particles from larger ones. It is an important technique applied in many fields dealing with raw materials and building materials for process and reuse. This technique can achieve 99% high efficiency with its circular movement. Machines with tumbler screening techniques are commonly used because of its unique rush design, high life time utility, and the flexible angular velocity the machines can achieve. However, this type of machine requires low feed flow rate and the particles size for separation have to be controlled within a specific range.

    Technical Parameters of High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules:

    ModelScreen Area (m²)Layers of ScreenMotor Power (KW)
    AM-6000.281~50.25
    AM-10000.721~51.5
    AM-12001.101~51.5
    AM-15001.801~52.2
    AM-18002.301~54.0
    AM-20002.601~54.0
    AM-23003.901~54.0
    AM-26005.301~55.5
    AM-29006.401~55.5

    Features of High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules:

    1. Up to 7 fractions simultaneously on each machine
    2. Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity
    3. Heavy base to counterbalance the rotating body
    4. Up to 100% availability in 24h operation with few maintenance requirements
    5. Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing
    6. 100% dustproof thanks to simple fast-mounting Silicone clip-on gaskets on the intermediate rings, thereby dispensing with the requirement to exchange the formerly used U-shaped gaskets on the screen inserts
    7. Delivered operationally ready and adjusted to each product
    8. Easy dismantling and cleaning of all parts down to the conical base
    9. Low noise level of approx. 75 db(A)
    10. Optional: quick clamps for maximum time saving when changing screens
    11. Low acceleration, long service life of all parts, no product destruction
    12. Tough modular design, no dead corners, low part weights
    13. 100% statically and dynamically balanced for vibration free installation in steel structures
    14. Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks
    15. Favorable prices and short delivery times


    Important Information About High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules:

    Motioninvolute spiral motion
    Screening Accuracyupto 90%~99.9%
    Mesh Cleaning Methodbouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
    Screen Structurewhole adhesive screen, or splicing segmented screen etc.
    Layers of Screen1~5 layers of screen
    Diameter600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
    Advantagessoft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
    Optionalquick clamps, pneumatic lifting devices etc.
    Applicationcan be used for material that is flammable, explosive and easy to generate static
    Motor BrandSiemens, ABB, BEGEMA etc.

    BALANCE IS IMPORTANT !! Pneumatic Lifting Device


    Working Principle of High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules:

    Basic rotary motion is similar to manual screening. Eccentricity adjustable from 25 to 40mm, low-speed V-belt drive adjustable from 120 to 360rpm. The residence time of each product can be adjusted in the direction of the drive axis by the radial and cut angles of the oscillating screen. Therefore establish level and throw 3D tumbling motion. The material is evenly dispersed across the entire screen surface from the center to the outer edge, so that it propagates axially in a spiral motion. Fine particles thus complete the entire screening process. The horizontal and vertical accelerations increase with the movement of the particles, and the particles close to the mesh size are successfully separated; the larger particles are transported to the exit, and the flow is controlled by an adjustable guide at the exit. The guide is controlled. Another factor of material residence time. This process is repeated between each sieve layer.



    Application of High Accuracy and Large Capacity Tumbler Sieving Machine for Yeast Granules:

    The tumbler screening machine is popular used in Chemicals/Pharmaceuticals, Aggregates and Ores, Food, Waste/Recycling, Plastics, Metallurgy, Wood/Biofuels, Ceramics, Feed etc.
